REGIS Belt Splicing Structure
Regis Resources·Regis Resources, Western Australia·2025
01
Challenge
Regis Resources required a belt splicing structure that could be fabricated and installed within a tight shutdown window, with accurate as-built modelling to ensure first-time fit.
02
Approach

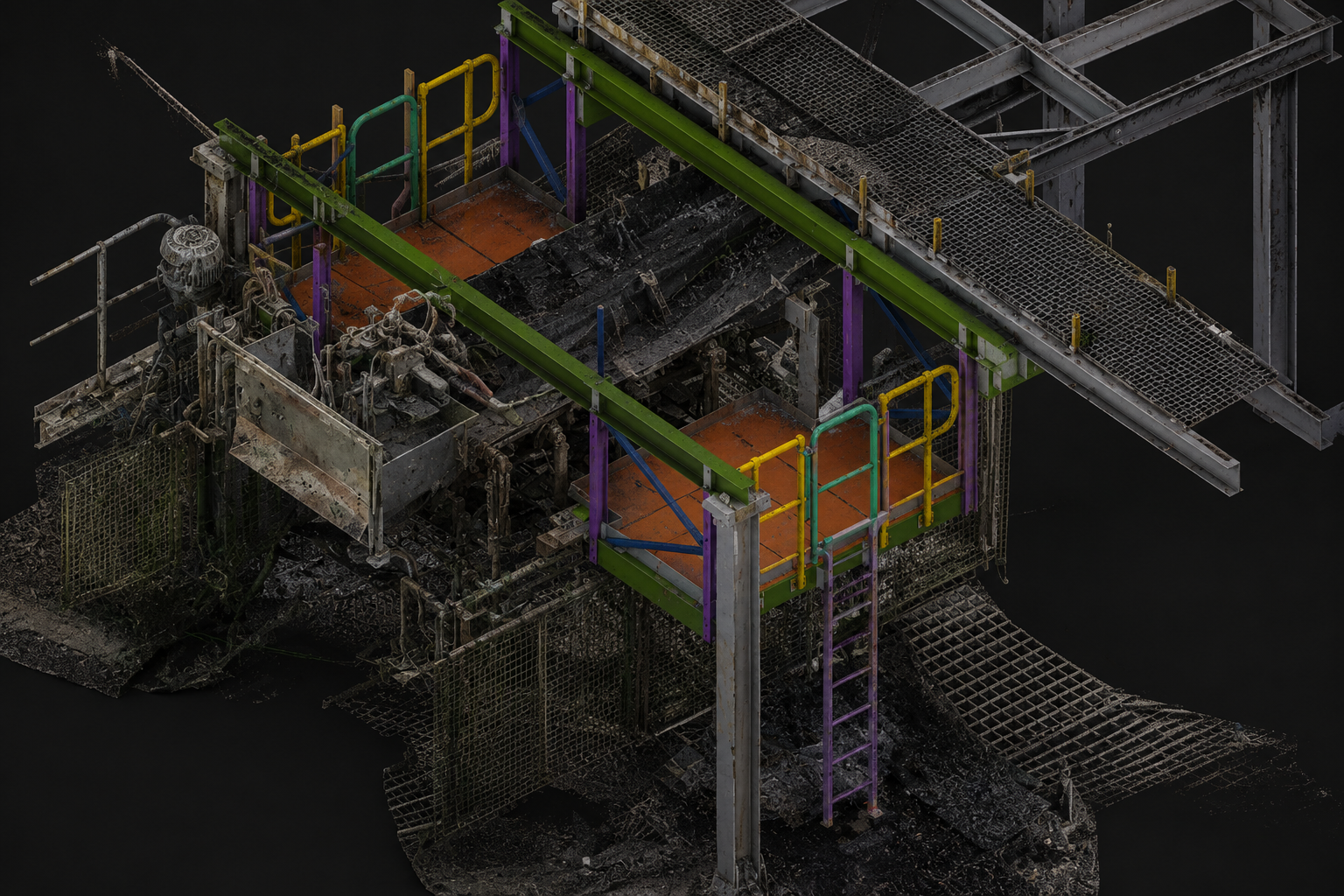

We conducted 3D laser scanning of the existing conveyor area to capture precise as-built conditions, then modelled the belt splicing structure in 3D CAD before producing detailed fabrication drawings.
03
Engineering Process
- 1Site visit and 3D laser scan of the existing conveyor structure
- 2Point cloud processing and as-built 3D modelling

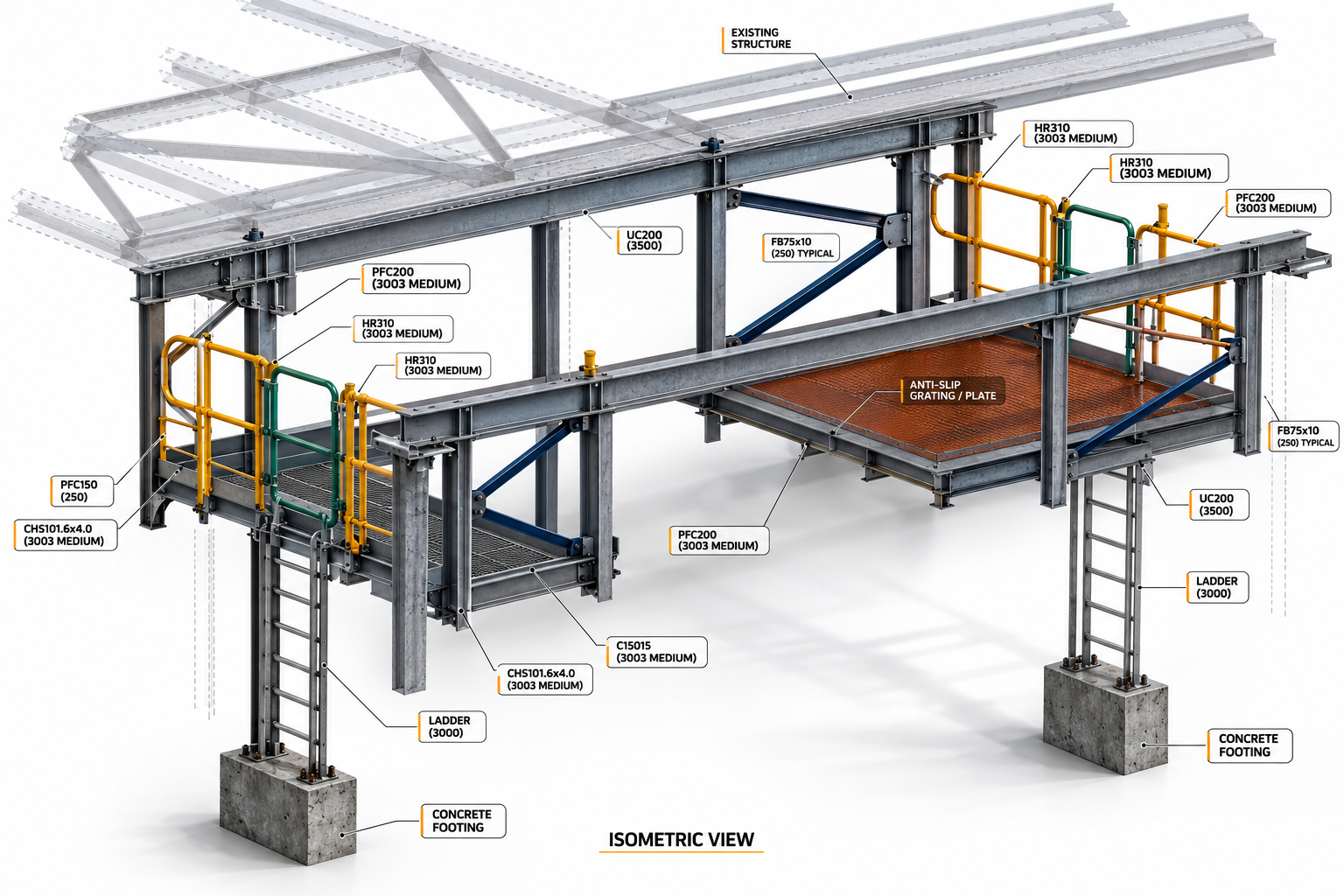

- 3Structural design of the belt splicing platform

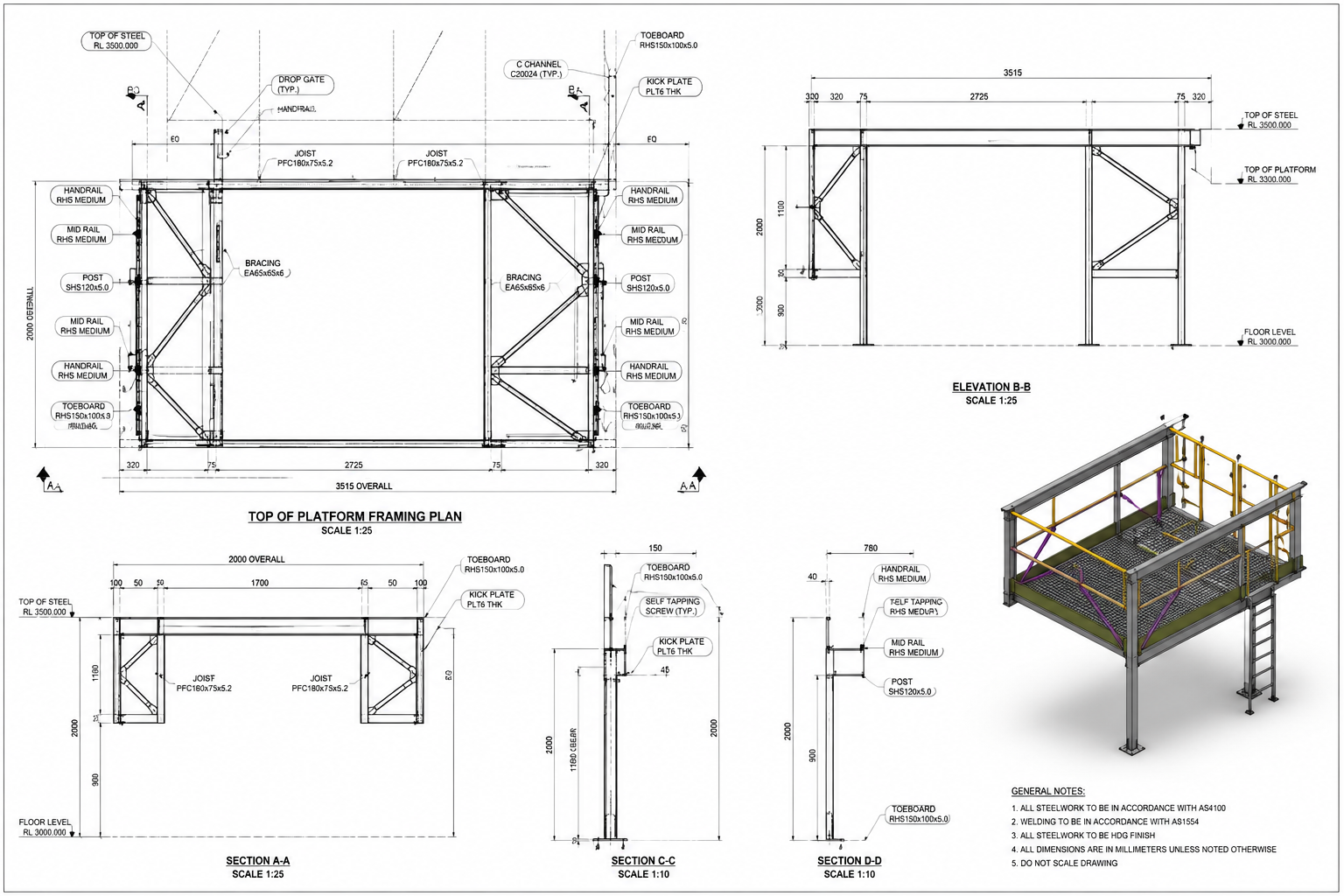

- 4Detailed fabrication drawings for the workshop
- 5Review and approval with Regis Resources engineering team
04
Deliverables
- 3D model of the belt splicing structure
- Full set of fabrication drawings
- As-built documentation of existing conditions
05
Outcome
The structure was fabricated and installed within the shutdown window with accurate first-time fit, reducing rework and minimising downtime.
